SWFL
Super Micron Mill
|

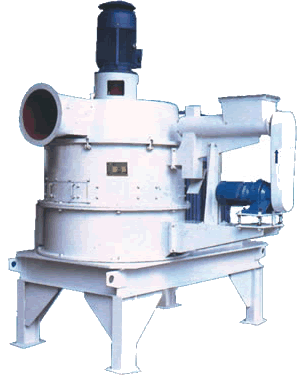

SWFL Super Micron Mill
1, A vertical-screen smash, compact, small footprint;
2,
Ginding and classification at the same body can be crushed at the
same time, grading, then smash the process, finished granularity
reach 60 to 200 mesh, uniform size;
3, The
classification system optimization design, grading high efficiency;
4, The
observation of the door structure, and easy to maintain;
5, Optional
hydraulic opening, the body can quickly smash open the room to facilitate
maintenance or replacement;
6, Equipped
with a variety of sensors, more reliable equipment operation;
7, With
special muffler, the noise can be significantly reduced.
8, The
broken arch unique feeding device to prevent feed materials at the
end arch;
9, Can
be used in corn, wheat, fish meal, Shell, defatted soy, monosodium
glutamate, glucose, pharmaceuticals, dyes intermediates, activated
carbon, and other materials AMD smash
| Model |
SWFL82B |
SWFL110B |
SWFL130B |
| Capacity |
1.2-2.2 |
1.8-3.0 |
3.0-5.5 |
| Main Motor Power(kw) |
90 |
110 |
132/160 |
| Rotor Diamete(mm) |
820 |
1100 |
1300 |
| Grading Motor
Power(kw) |
5.5 |
7.5 |
11 |
|
